JS5501C Intelligent Power Meter
JS5501C Intelligent Power Meter is composed of accurate electric parameter module, wireless module, 32-bit ARM chip, high-quality relay, memory chip and industrial 485 communication chip. It can monitor and collect the voltage, current, power, power factor, electric quantity, frequency and other six parameters of the test object in real time.
-

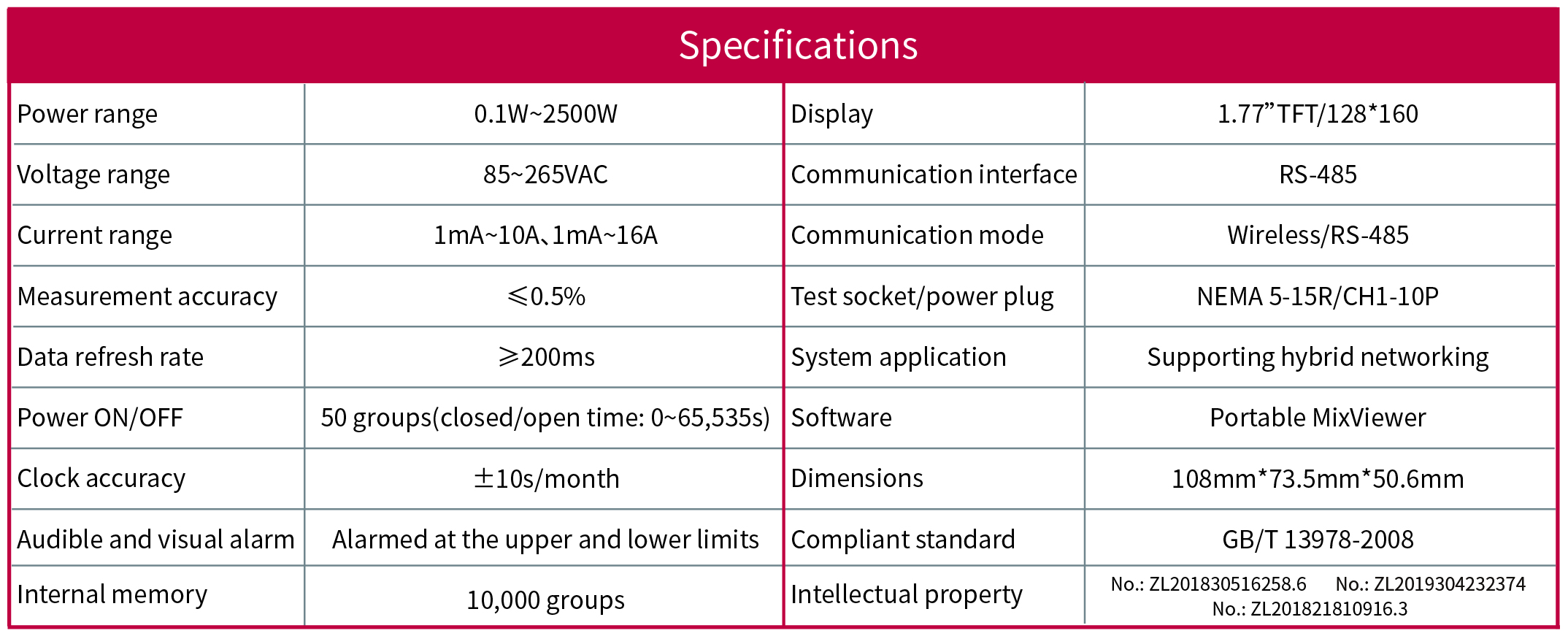

Power
0W~2500W
≤0.5% -
Voltage
85~ 265VAC
≤0.5% -
Current
1mA~10A
1mA~16A -
Power on/off
50 groups
closed/open time: 0~65,535s -
Precision clock
±10s/month
| Function | Extended application |
|---|---|
| Electrical parameter measurement |
JS5301A Function extension box of connection between robot
and measurement parameter judgment
|
| Power on/off |
JS5302A Wireless barcode scanner
*Supporting one barcode scanner -to-one Power Meter and
one barcode scanner -to-multiple Power Meters
|
| Acousto-optic alarm |
JS5303A Power ON-OFF function extension box
*Supporting on-off ≥ 10 million times
|
| Communication storage | JS5401A Ambient temperature and humidity probe |
| Precision clock |
JS5403A Three-phase electrical parameter measurement extension
module
|
Industrial Interent Instrument
