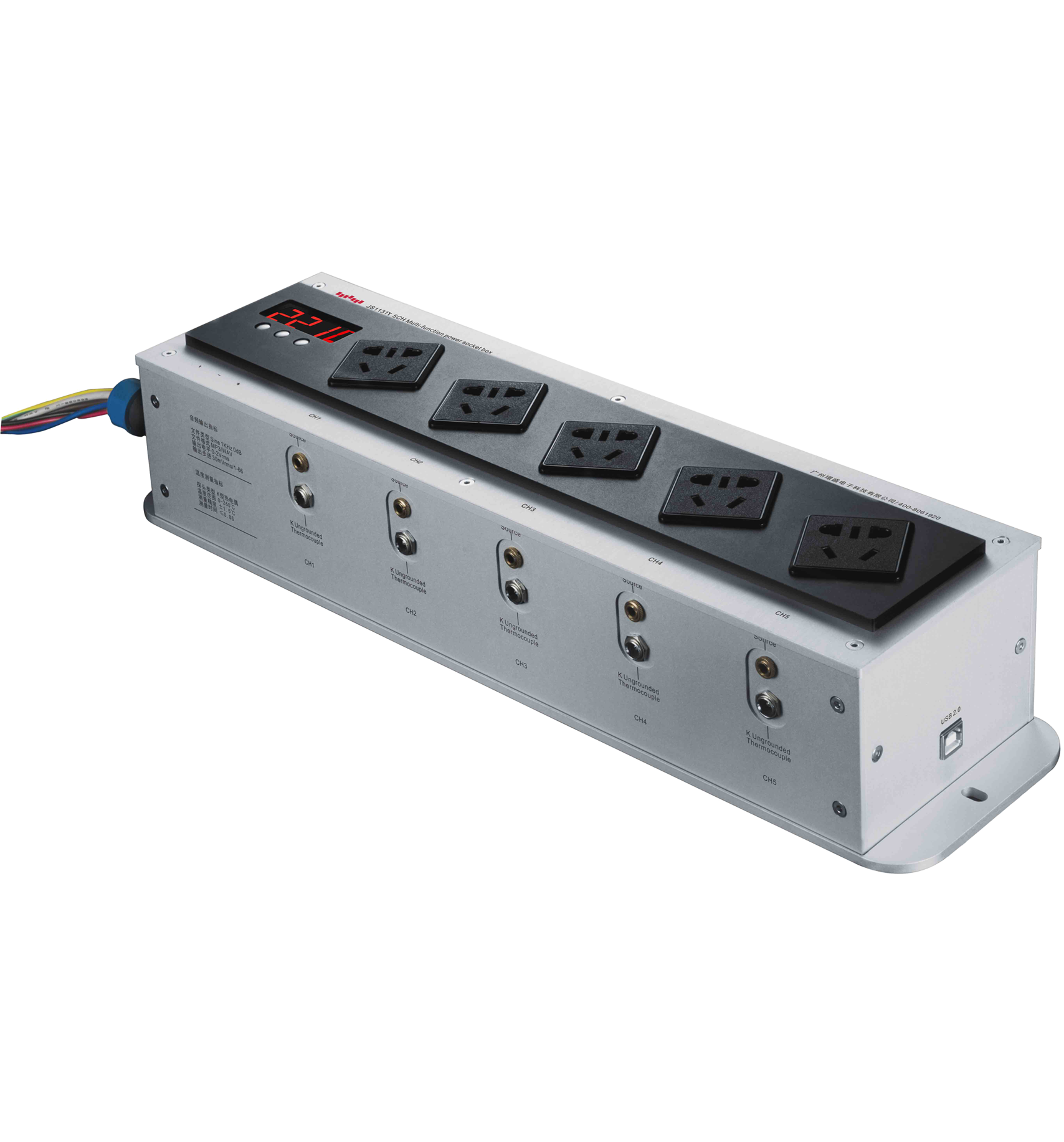

JS1131T Audio product aging monitoring system
JS1131T Audio product aging monitoring system integrates high-speed data processing core, relying on smart hardware structure design, through upper computer software and anti-interference circuit, it will monitor the working status of audio products.
-

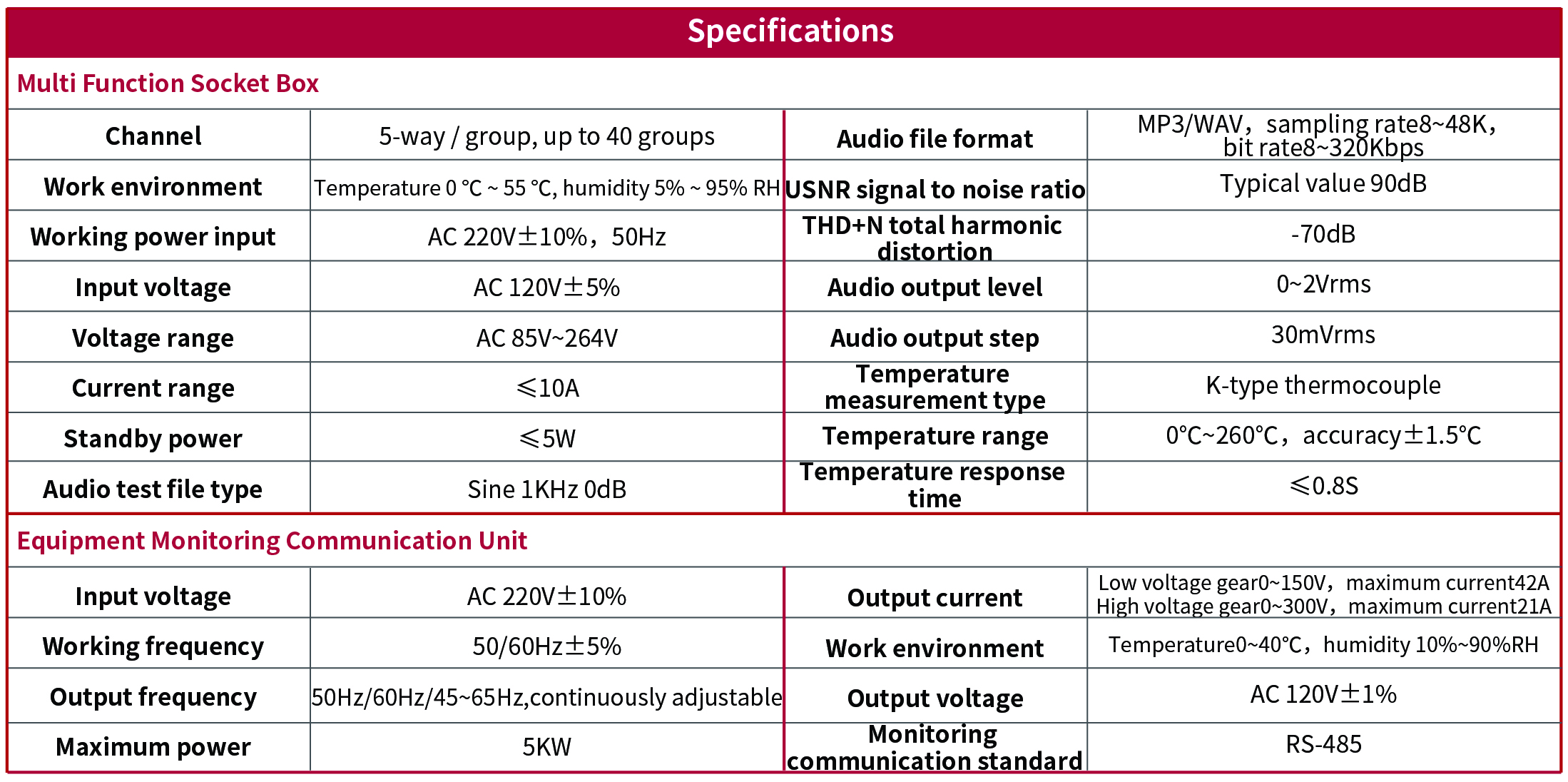

Test channels
5ch
-
Electric current
≤10A
-
Audio output level
0~2Vrms
-
Audio output step
30mVrms
-
Monitoring communication
RS-485
| Function | Characteristic |
|---|---|
| Wireless connection monitoring | Digital tube display |
| Highly integrated functions | High precision and speed |
| Integrated audio output module | Long time on-off aging |
| Intelligent adjustment of sound source output | Automatic alarm |
| -- | Real time display product power consumption |
| -- | Multichannel test interface |
